RDM8802Mod是一款全新的精品型DMX512-RDM双向通信协议信号分配器产品,它能够将DMX512-RDM数据信号进行整形放大后分配成4路或8路DMX512-RDM信号输出,并且各输入输出接口供电独立,采用高压隔离技术。
◆8路经电气隔离的信号分配输出;每路都有信号指示灯;
◆1路信号输入,8路直通信号输出(信号输入与直通信号之间有经电气隔离)
◆增强数据总线接入设备数量的能力。保护灯光控制台DMX512输出接口,故障现场隔离,提高数字式灯光控制系统的安全运行可靠性。
◆具备双向DMX512-RDM协议功能,灯具信息可反馈到MA控台等具备RDM功能的灯光控台上。
◆供电电源:AC90V-240V 50HZ/60HZ
◆净重:1.8KG
◆毛重:2.2KG
◆体积:19”1U,530*180*100mm
◆ Output 8chs DMX signal after the electrical isolation with signal indicator light in every way
◆Shape and amplify signal, extend the distance of signal transmission
◆ 1ch signal input and 8ch direct signal output
◆It can increase the device number of data bus、 protect DMX512 output port of controller and improve the safety and stability of digital light control system
◆Possess two-way DMX512-RDM protocol function. Can feedback the light data to MA and other RDM light controller ◆Voltage:AC90V-240V 50HZ/60HZ
◆N.W:1.8KG
◆G.W:2.2KG
◆Size:19”1U,53.5*18.5*10CM
触摸手绘1024灯光控制台,以全新的触摸手绘操控和编程理念,颠覆式地改变了操控灯具的简便性和快捷性,如果您是新手,可让您立即晋升为灯光师;如果您是灯光师,能让您省时省心省力。
Touch Drawing controller subversively changes the simplicity and fastness of controlling lights with new operation and programming concept. If you are a novice, you will be promoted to a lighting engineer immediately; If you are a lighting engineer, it will save your time and effort.
一)CR005P智能开关控制器简介:
1) CR005P是一款多功能开关控制器产品,它除了具备多种智能控制方式外,同时还具备按顺序延时开启开关的功能,该功能的用途在于防止多台设备同时上电时产生较大浪涌电流,该浪涌电流有可能会干扰甚至损坏设备,或者引起供电线路跳闸等故障;
2) CR005P的重点在于满足各种智能控制场合的特殊控制方式的需要,它具备:1)串口控制码控制方式(包括“Code码”方式和“学习码”方式),2)DMX512控制方式,3)MH-Player播放器界面操作键控制(或同步控制);当您想得到控制方式而找不到对应设备时, CR005P就是您的首选,它能让您的普通设备立即变成智能设备;
3) CR005P有灵活的输出接线模式:它的输出为继电器开关信号(继电器的3个输出端子在内部没有接入任何供电,用户可根据需要自行接线,实现“强电输出”或“弱电控制”功能),每路继电器最大可支持2000W的输出功率,继电器有“常开”和“常闭”两种开关状态输出。
◆A type of many function switch console , in addition to a variety of intelligent control methods , meanwhile it also has the function of delaying the switch in order.
◆The point of smart switch console is to meet the needs of special control methods for various smart control applications .it has : 1)control methods of serial control code (inside “code ”method and “learning code ” methods ) 2) DMX 512 control methods 3) MH-Player interface operation key control (or synchronous control )
◆Each relay can support at least 2000W power output
◆ 供电:三相五线制AC380V±10%,频率50Hz±5%.
◆ 信号接口:数字DMX-512(1990).
◆ 额定功率:6路×6KW. 每个回路最大输出功率可达8kW.
◆ 外形尺寸(mm):L515×W485×H133 ,整机重量:18KG.
◆Power supply: Three-phase-five-wire system AC380V±10%, Frequency: 50Hz±5%
◆Signal interface: Digital DMX512(1990)
◆Power: 6×6KW. The biggest output power of each circuit can reach 8KW
◆Size(mm): L515×W485×H133 Weight:18KG
◆ 电压AC110-230V. 50-60HZ
◆ 15A输出,万能插板
◆ 包装尺寸:510*175*140mm 重量1.9KG

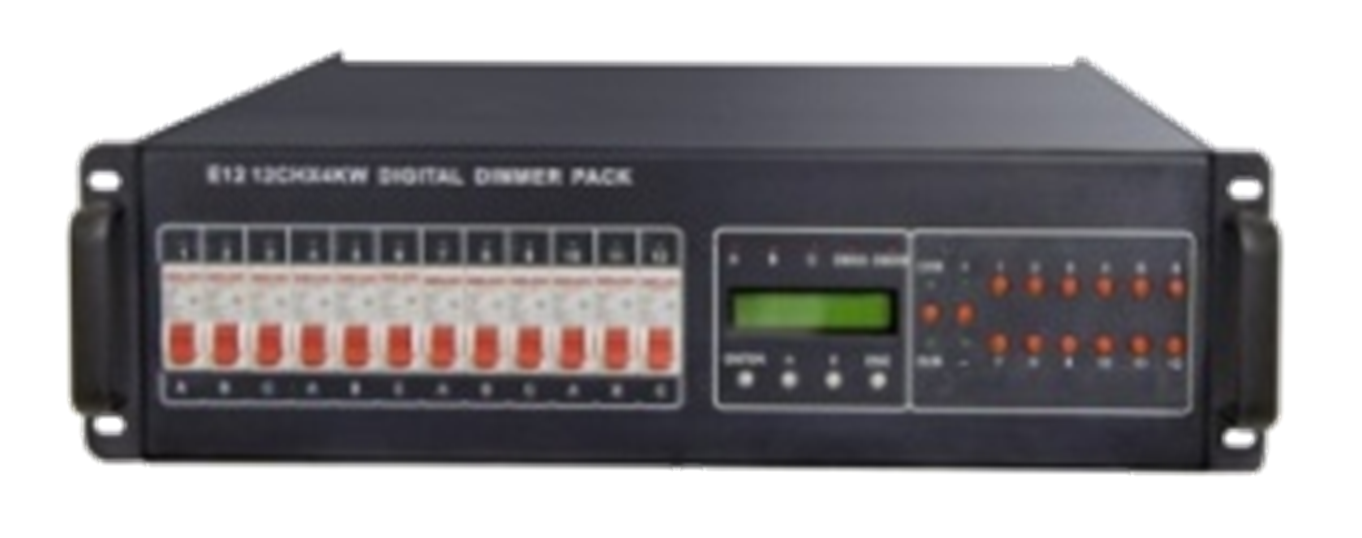

◆输入电源:AC380/220V
◆输出功率:每路4千瓦
◆12路20A空气回路短路保护
◆包装尺寸:515*515*210mm
◆净重:12KG 毛重:13.7KG
◆输入电源:AC380/220V
◆输出功率:每路2千瓦
◆12路10A空气回路短路保护
◆包装尺寸:527*240*185mm
◆净重:4.3KG 毛重:5.7KG
