CA8602Mod是一款以捆绑式快速安装的DMX512信号分配器产品,适合在灯架上任何位置快速安装,它能够将DMX512 数据信号进行整形放大。 输入和输出端口采用独立电源供电,各输出接口采用模块式设计,采用高压隔离技术与端口保护电路。
CA8602Mod is a kind of the DMX splitter with the stickers easily installed against the truss at any position .It can strengthen and amplify the DMX signal from the DMX controller.
◆1进6出;它的输出电路都采用模块式设计,您可以像搭积木似的,将3芯与5输出模块进行任意搭配,组合成您想要的形式,使用起来更加快捷方便;

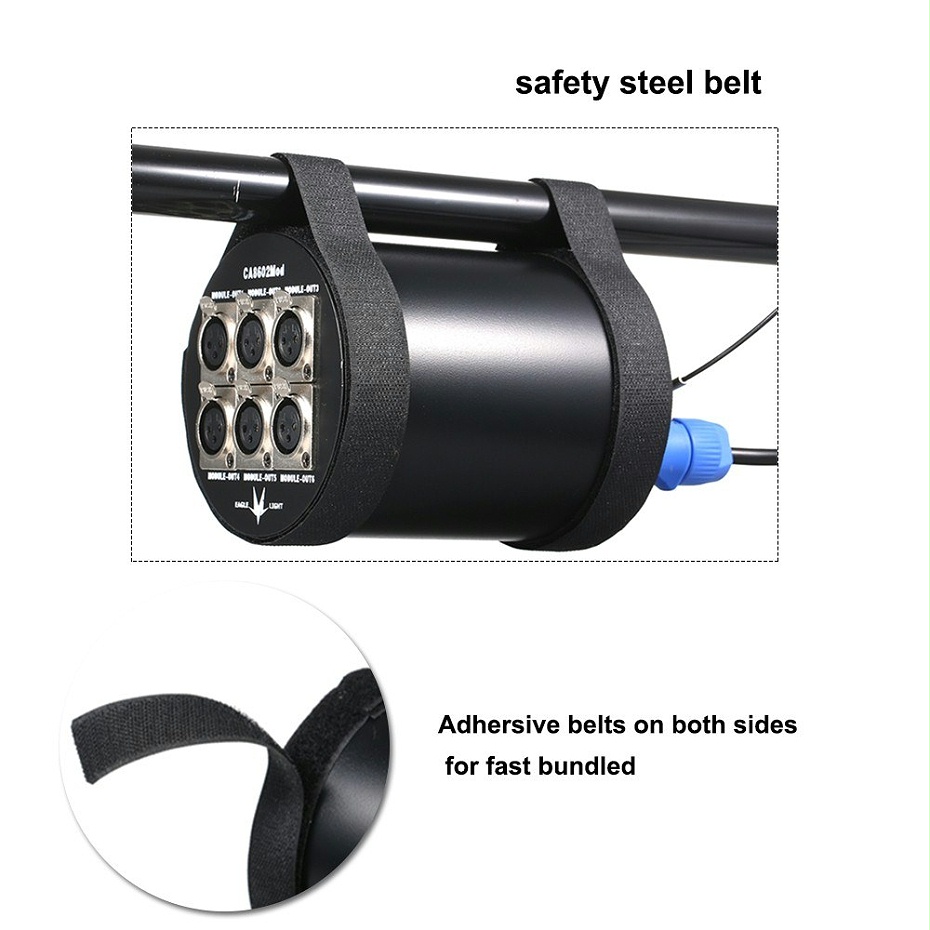

◆当输出模块受到外部大电流冲击造成损坏”时现场更换处理及其方便,使用自带的子母贴捆绑式安装在灯架上,因此为现场应用又增加了一层安全防护措施;

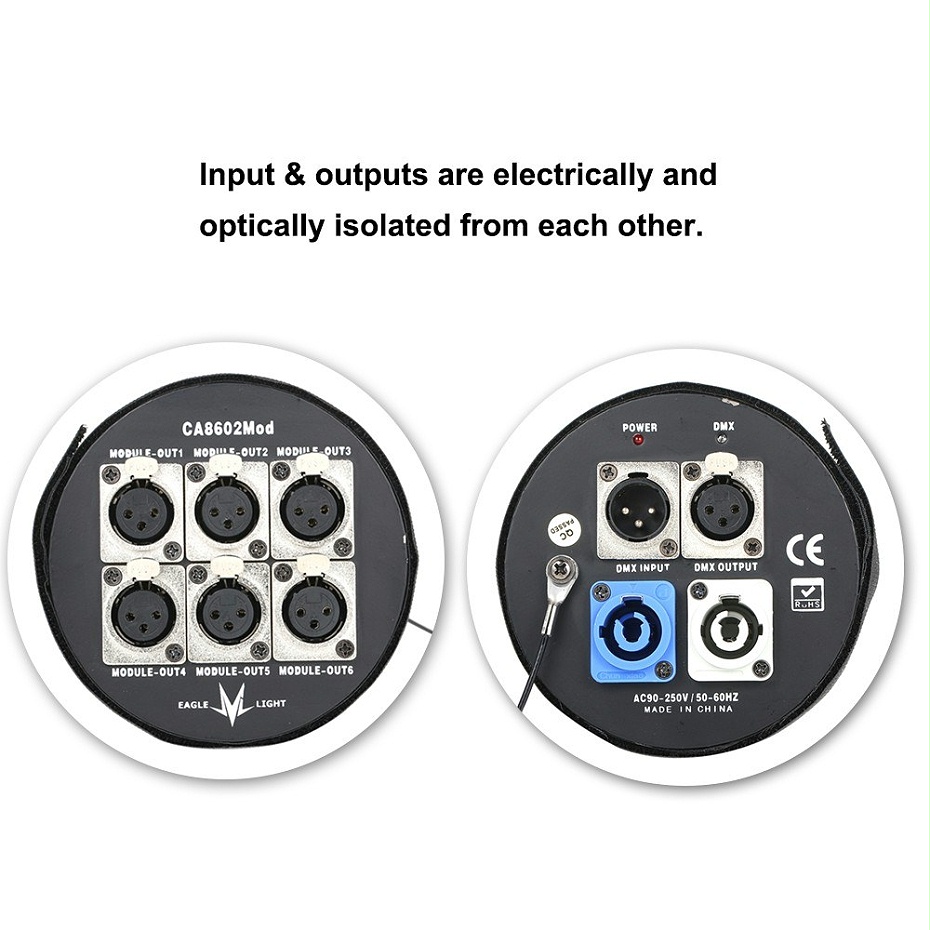

◆输入与输出采用独立的电源供电,每个接口都有独立的保护电路和光电隔离措施,实现了信号与电气上的完全隔离;
◆银色金属3芯或5芯卡侬座更结实耐用。
◆115*170CM / 0.86KG
◆Each in-out processing circuit both adopt modular design, and user can willfully match the assembly 3 pins or 5 pins in-out modular according to your needs.
◆When the output module was broken caused by strongly attack from the external current,then the user can fix it at once .So it has another protection method for the live shows.
◆Each in-out has independent power supply, and each modular board is isolated with the independent protection circuit and photoelectric isolation. The measures realized the absolutely isolation between the signal and the electricity
◆The 3 Pin (XLR-3) or 5 Pin(XLR-5) are more durable with the silver metal,
◆115*170CM/0.86KG
