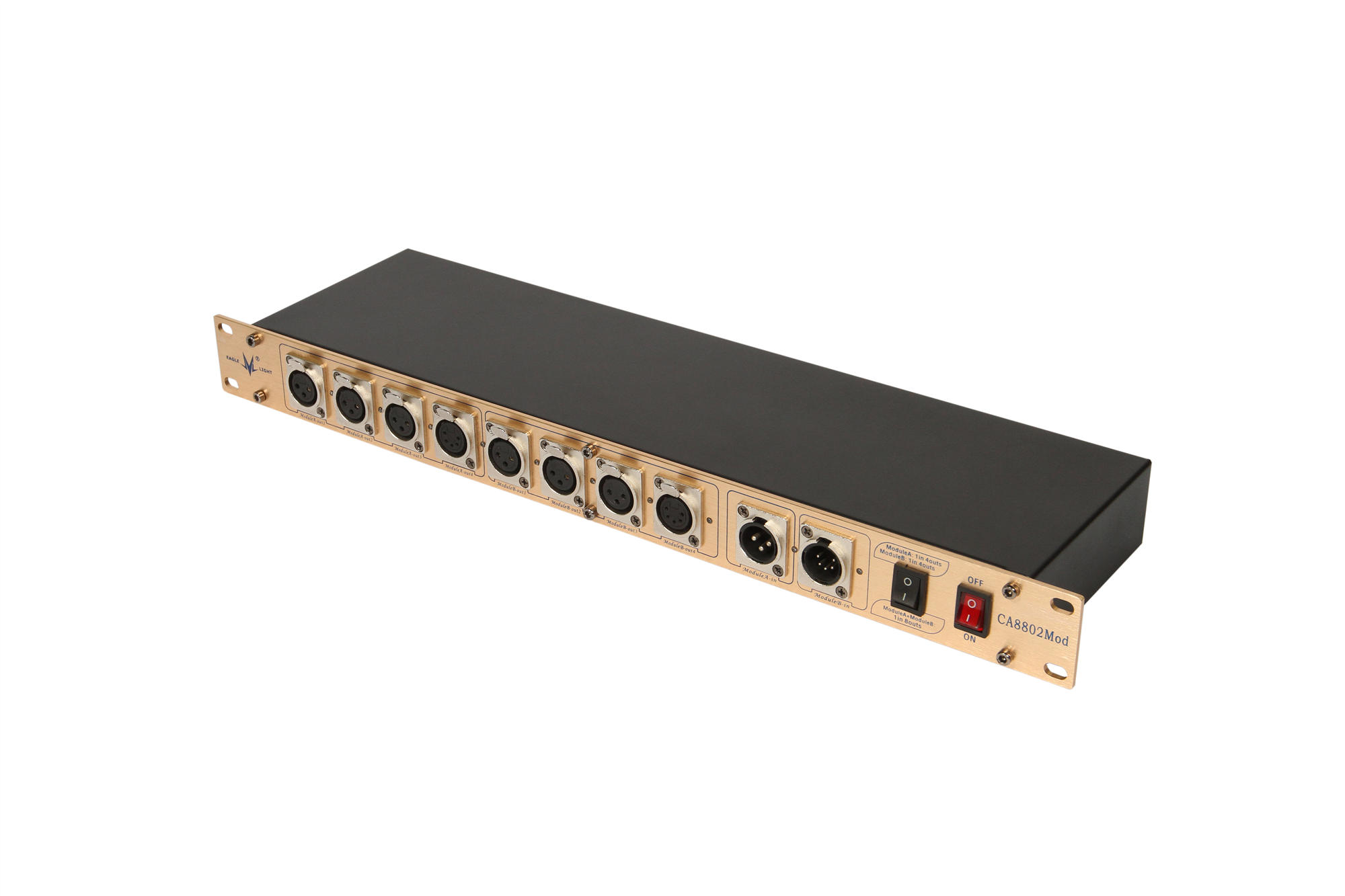

CA8802Mod是一款全新的精品型DMX512信号分配器产品,她能够将DMX512数据信号进行整形放大后分配成4路或8路DMX512 信号输出,并且各输入输出接口供电独立,采用高压隔离技术。适用于DMX512信号远距离传输及扩展使用灯具数量的场合,及需要各信号端口之间完全电气隔离的使用场合。
CA8802Mod is a newest DMX Splitter, which can shape and amplify the signal output in 4ways or 8 ways, and each input and output has separately electricity supply with high voltage isolation technology .The products can be used for the situation like long distance transmission and extending the quantity of the lighting in the live show and the electrical isolation between each port.
CA8802Mod是一款全新的精品型DMX512信号分配器产品。
◆模块式DMX信号分配器,国际通用的DMX512协议
◆电源:每路输入输出有独立的供电电源(采用变压器供电),每个模块板都用独立的光电隔离,完全避免了模块之间电路的相互影响;
◆能将输入的DMX512信号分配成多路输出,并对输出信号进行整形放大处理;

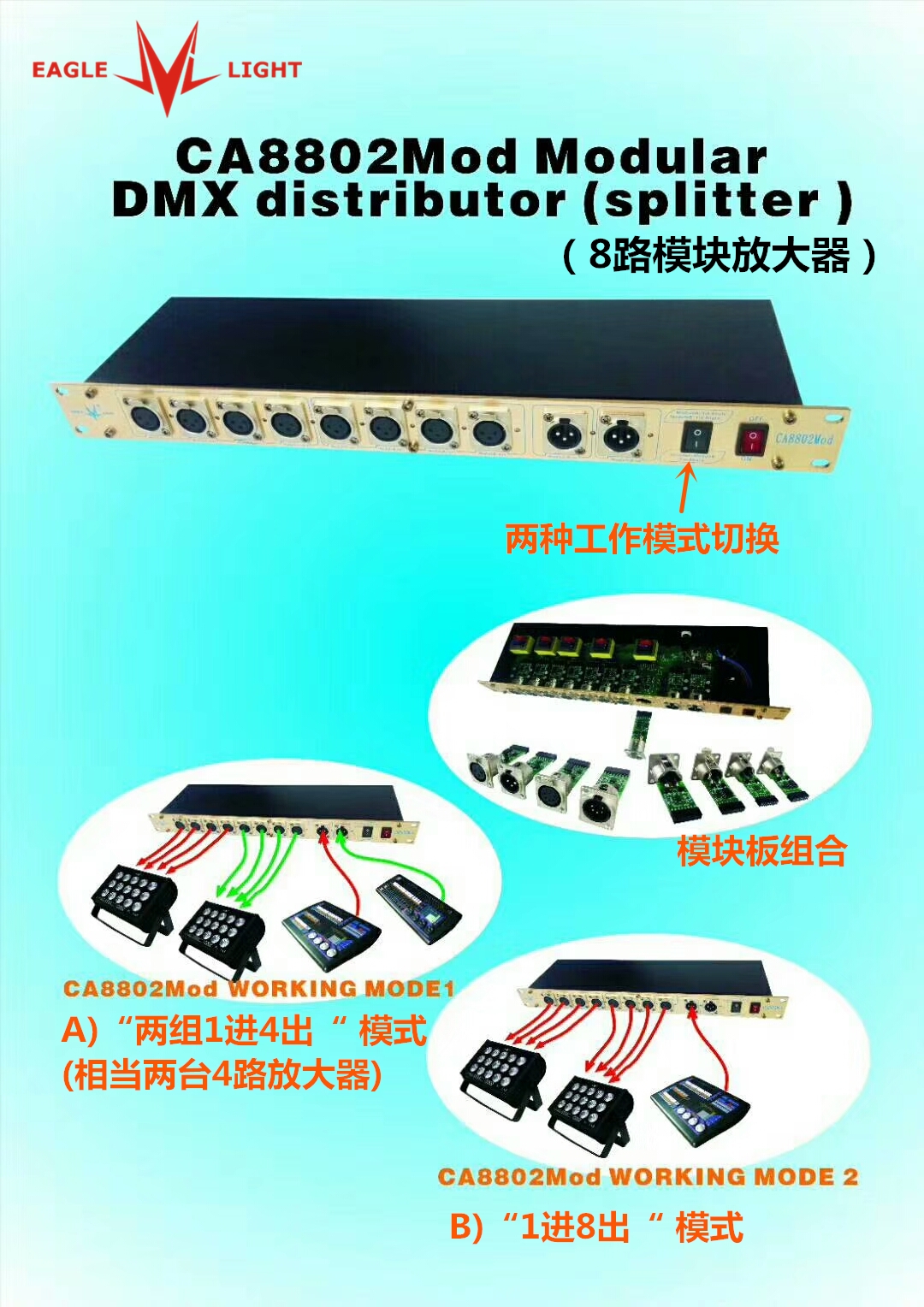

◆信号输出; 两种工作模式可由“模式开关”进行现场切换:
A)“两组1进4出”模式:将一个8路放大器分离成 两台4路放大器(此模式主要用于控台数量多或控台端口多的情况);
B)“一组1进8出”模式:将两个4路放大器合成一个8路放大器(此模式主要用来增加放大器的输出端口的数量)。
◆每路输入输出处理电路都采用模块式设计,用户可根据自身需要,任意搭配组合成3芯或5芯, 立信号指示灯;光电隔离效果;变压器电源耐用稳定;
◆输入对输出的电气隔离耐压;>AC300V

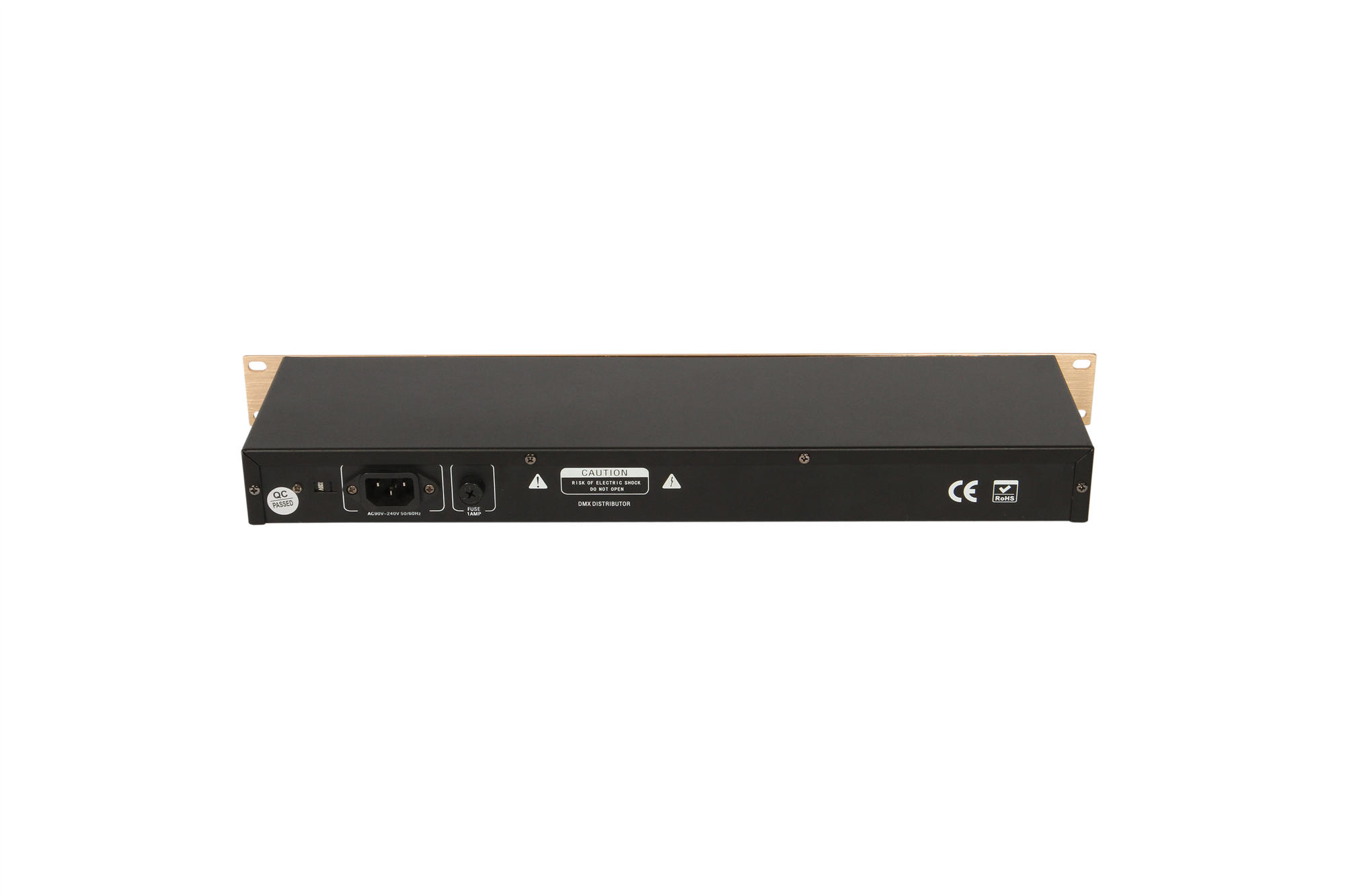

◆安装结构:尺寸;480*45*125mm /2.38KG “19”1U
◆Inside is with modular DMX signal board ,with power transformers;
◆2 work modes : 1 input 8 output ; 2 inputs , 2 group of 4 ways to output (can use 2 different controller at the same time )
◆Each input and output all have independent power supply(Adopt transformer to supply)
. Using independent photoelectric isolation to every module to avoid the inference between them.
◆Isolation voltage band between input and output: >AC300V
